Product Summary
RF POWER AMPLIFIER MODULE VHF POWER AMPLIFIER MODULE(HAM FM)
Parametrics
Absolute Maximum Ratings(Tc=25℃)
DC Suppliy Voltage Vcc :16V
DC Suppliy Voltage Vccn :16V
RF input power P1 :300mW
Operating case temperature ratings Tc(op) :-30~100℃
Storange temperature ratings Tsg :-40~100℃
Features
Feature :
(1)Output Power:Po≥15W;
(2)Minimum Gain:Gp=18.7dB;
(3)Efficiency:nT≥48％;
(4)50Ω input/Output impedance ;
(5)Guaranteed Stabilty

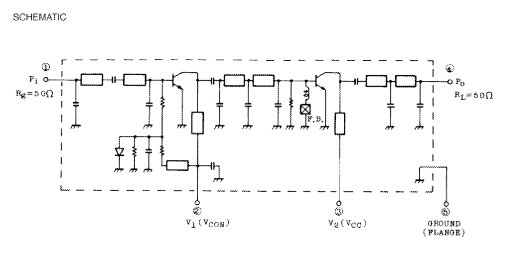

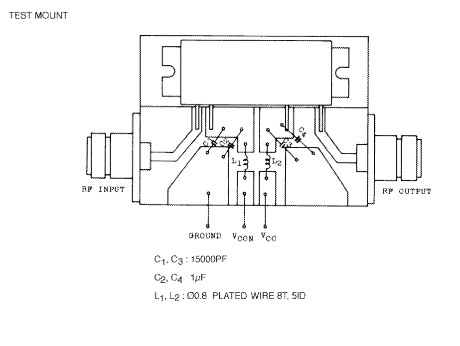

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

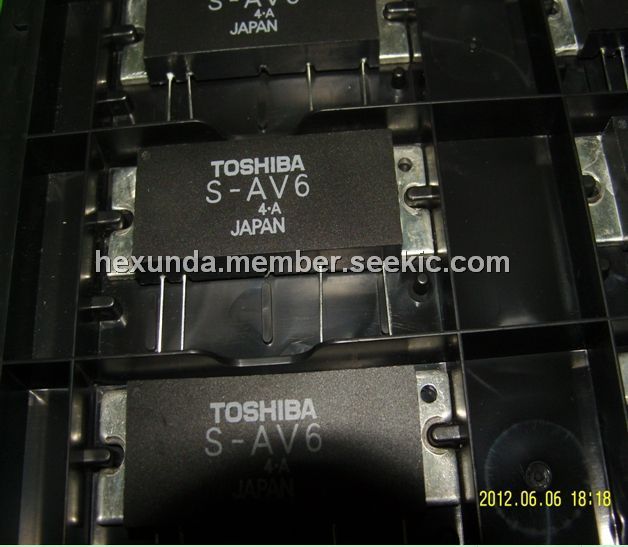

 S-AV6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
S-AV10H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S-AV10L |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S-AV17 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S-AV23AL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S-AV28 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S-AV30H |
Other |
|
Data Sheet |
Negotiable |
|
||||
